£9.01

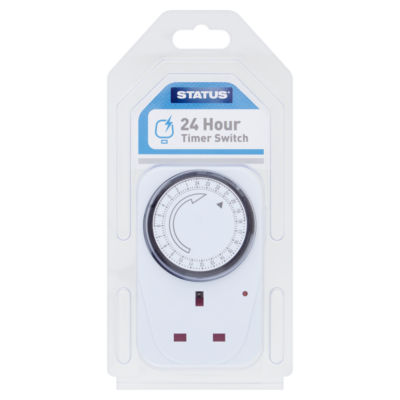

Save energy and gain convenience by automating your home appliances with the Status 24 Hour Timer Switch. This reliable electrical accessory allows you to schedule devices like lights and heaters easily. It is a British-made product designed for use in standard UK sockets.
- Offers up to 96 on/off settings per day for flexible scheduling.
- Complies with BS5733 safety standards ensuring safe operation.
- Easy to program with a rotating ring and press-down segments for 15-minute intervals.
- Suitable for both resistive and inductive loads, including heaters and washing machines.
- Includes a bypass switch to use the socket without timer settings.
- £9.01
£0.00- £9.01
- Unit price
- per
Shopped From |
ASDA
Duties & Customs (You Pay)
Import fees may apply on arrival, and you must pay any customs charges. Prices exclude duties. Learn More: Shipping Policy | Terms and Conditions
Description
xQuality Status Approved - ST-31
Safety Warning: DO NOT EXCEED THE MAXIMUM LOAD REQUIRED FOR THIS PRODUCT. IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN. NOT RECOMMENDED FOR USE ON IMMERSION HEATERS.
Technical Specification: Maximum wattage: 3120w - Resistive. Maximum wattage: 480w - Inductive. Maximum current: 13 Amp - Resistive. Maximum current: 2 Amp - Inductive. 250V-50Hz. Complies to BS5733. Maximum Current 13(2)AMP Voltage 240/250V 50HZ Application (Resistive) Load Radiators, Heaters, Radio's and Lamps Etc. Applications (Inductive) Load (Electric Motors) Washing Machines, Dish Washers, Fan Heaters Etc.
Preparation and Usage: To set the timer to the current time, rotate the black ring clockwise until the black pointer on the timer is aligned with time on the ring that corresponds to the current time. Each mark equates to 15 minutes. The timer has an accuracy of +/- 6 minute per 24 hour. To set the operating time of the timer, press down the black segments corresponding to the required time interval. Each segment equates to a 15-minute interval and up to 96 individual on/off settings can be made during a 24-hour period. Plug the timer into the socket and switch on the socket. Slide the white switch on the side of the timer to the position. The timer is now active. Plug in and switch on the required appliance. When the current time on the timer reaches the depressed black segments, the appliance will activate. When the current time on the timer reaches the next raised black segment, the appliance will switch off. To bypass the timer settings (and activate the socket), move the switch to the position. To reset the timer intervals, lift up the black segments and follow the steps above to reset.
Storage Type: Ambient
Manufacturer Address: Status International (UK) Ltd, Pennine House, Mortimer Street, BD19 5AR.
